Active DirectoryAzure servicesMicrosoft Technologies

Azure AD Password Synchronization

Azure AD Connect allows engineers to sync on-permises AD data to Azure AD. If you use express settings for the AD connect setup, by default it enables the password synchronization as well. This allows users to use same Active Directory password to authenticate in to cloud based workloads. This allow users to use single login details without maintaining different passwords. It simplifies the user’s login experience as well as reduce the helpdesk involvements.

Windows Active Directory uses hash values, which is generated by hash algorithm as passwords. It is not being saved as clear text password and it is impossible to revert it back to a clear text password. There is misunderstanding about this as some people thinks Azure AD password sync uses clear text passwords. In every 2 minutes’ intervals Azure AD connect server retrieves password hashes from on-premises AD and sync it to Azure AD per user-basis in chronological order. This also involves with encryption and decryption process to add extra security to password sync process. In event of password change it will sync to Azure AD in next password sync interval. In healthy environment, maximum delay to update password will be 2 minutes.

If the password was changed while user has open session, it will affect on next Azure authentication attempt. It will not log out the user from existing session. Also, password synchronization doesn’t mean SSO. Users always have to use corporate login details to authenticate to Azure Services. You can find more information about SSO using https://docs.microsoft.com/en-us/azure/active-directory/connect/active-directory-aadconnect-sso

Enable synchronization of NTLM and Kerberos credential hashes to Azure AD

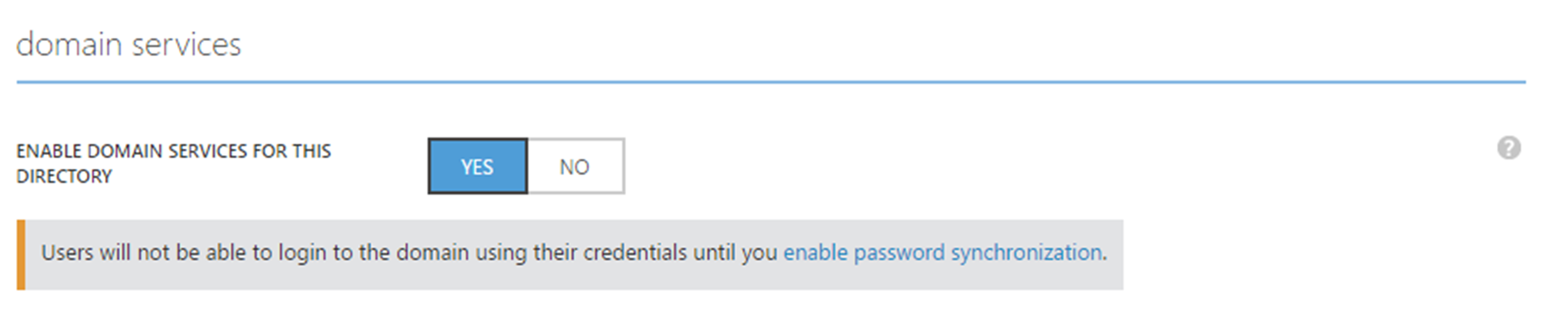

However Azure AD Connect does not synchronize NTLM and Kerberos credential hashes to Azure AD by default. So, if you had Azure AD directory setup and only enabled Azure Domain Services recently make sure you check following,

pass1
1. If there is existing Azure AD Connect server, Upgrade the Azure AD connect to latest
2. If there is existing Azure AD Connect server, confirm password synchronization is enabled in Azure AD connect

In order to do that, open Azure AD connect and select option to “view current configuration” and check if password synchronization is enabled.

pass2

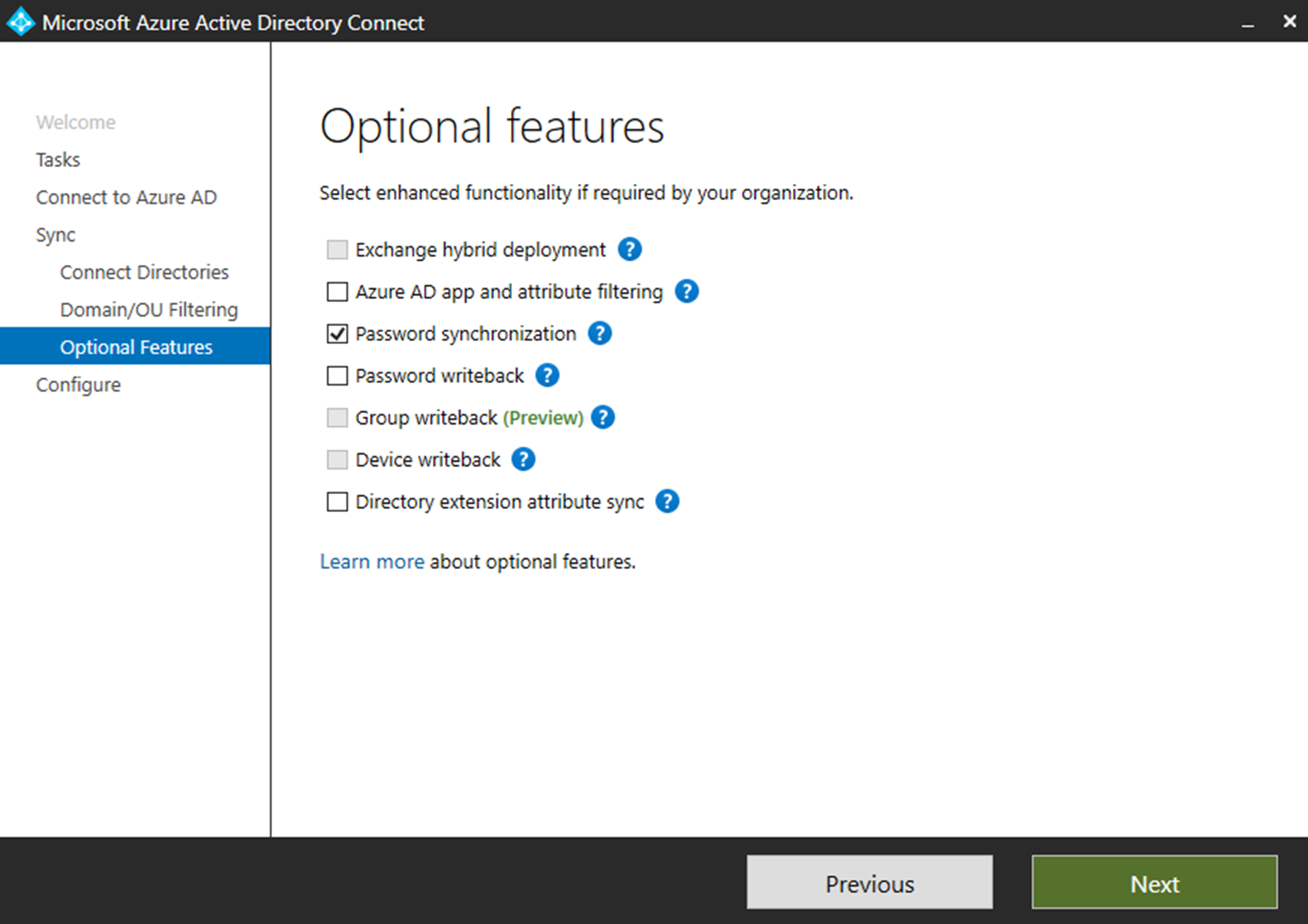

If it’s not, we need to go back to initial page and select option “customize synchronization options” and under optional features select password synchronization

pass3

Run following PowerShell script on local AD to force full password synchronization, and enable all on-premises users’ credential hashes to sync to Azure AD.

$adConnector = "<CASE SENSITIVE AD CONNECTOR NAME>"
$azureadConnector = "<CASE SENSITIVE AZURE AD CONNECTOR NAME>"
Import-Module “C:\Program Files\Microsoft Azure AD Sync\Bin\ADSync\ADSync.psd1”
$c = Get-ADSyncConnector -Name $adConnector
$p = New-Object Microsoft.IdentityManagement.PowerShell.ObjectModel.ConfigurationParameter "Microsoft.Synchronize.ForceFullPasswordSync", String, ConnectorGlobal, $null, $null, $null
$p.Value = 1
$c.GlobalParameters.Remove($p.Name)
$c.GlobalParameters.Add($p)
$c = Add-ADSyncConnector -Connector $c
Set-ADSyncAADPasswordSyncConfiguration -SourceConnector $adConnector -TargetConnector $azureadConnector -Enable $false
Set-ADSyncAADPasswordSyncConfiguration -SourceConnector $adConnector -TargetConnector $azureadConnector -Enable $true

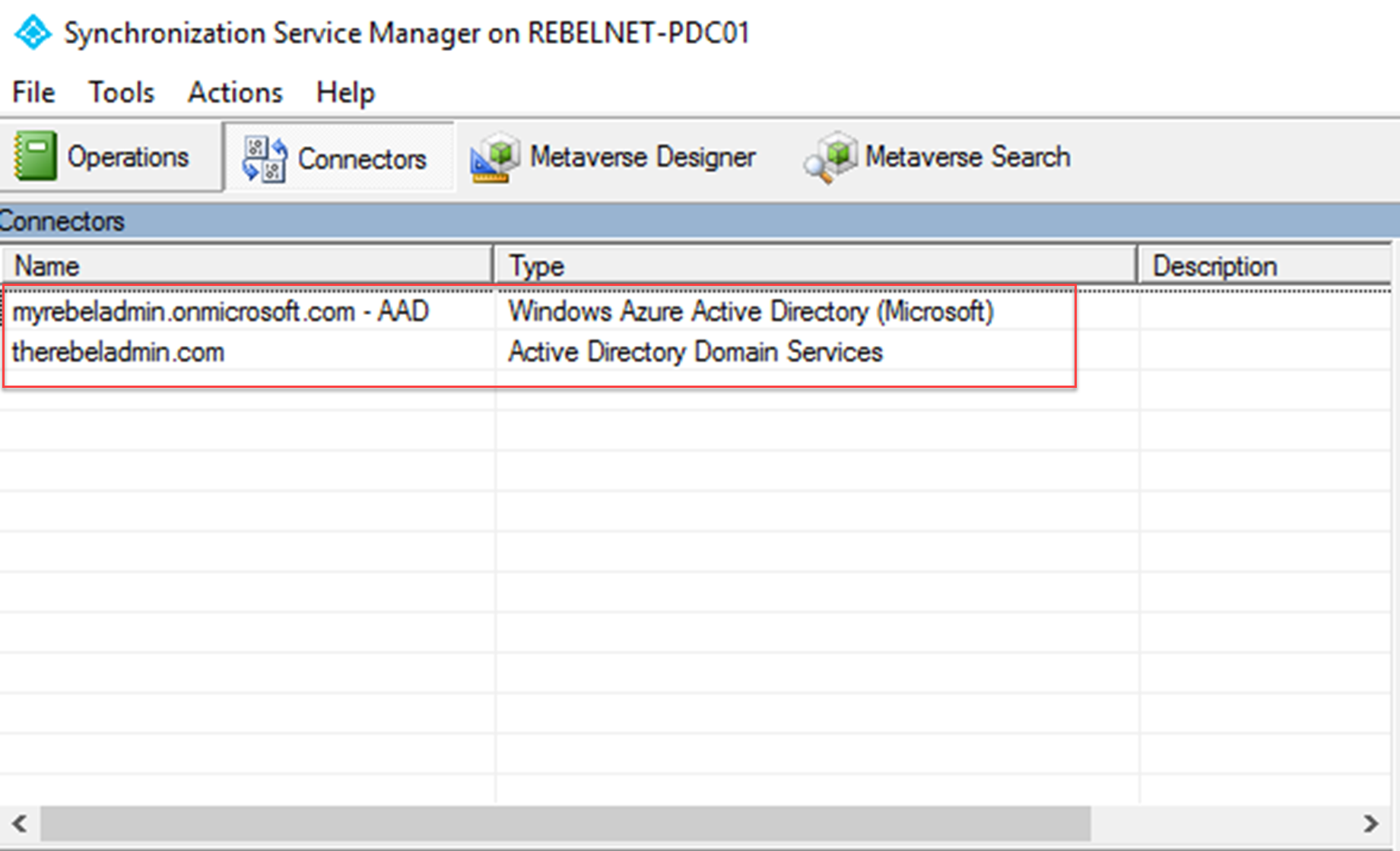

You can find AD connector and Azure AD Connector name using, Start > Synchronization Service > Connections.

pass4

After that you can try to log in to Azure as a user in on-premises AD. If sync is working properly, it should accept your corporate login.

This marks the end of this blog post. If you have any questions feel free to contact me on rebeladm@live.com also follow me on twitter @rebeladm to get updates about new blog posts.
